Production description
YL-160 screw oil making machine hot press rapeseeds oil processing machine
Lewin automatic screw press has complete specifications and reasonable price, suitable for different levels of consumer groups. The screw press equipment is mainly used for oil presses for individual household processing. Lewin spiral oil press hot and cold double system, many pressing functions, fine workmanship, many types, high oil yield, wide choice.
Parameter:
1.we have different models for you to choose.
2. According to your requirements, we can also customize for you
| Model | 6YL-120 | 6YL-130 | 6YL-120-3 | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1500KG | 1600KG | 1650KG | 1800KG | 1900KG | 1980KG |
| Vacuum Power | 1.1Kw | 1.1KW | 1.1KW | 2.2KW | 2.2KW | 2.2KW |
| Main Power | 15KW | 22KW | 18.5KW | 30KW | 30KW | 37KW |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity (Kg/h) | 120-160 | 180-300 | 160-280 | 220-450 | 300-600 | 400-750 |
| Dimension (mm) | 2000*1600* 2700 | 2150*1600* 2700 | 2600*1600* 2700 | 2650*1900* 2700 | 2650*1900* 2700 | 2700*2000* 2700 |
Main Features
1. Automatic spiral oil presser with vacuum filtration, fast purification and automatic temperature control technology
2. The oil is purity and can be eaten directly after vacuum filtration.
3. The L type feeding system, automatic feeding raw metrials and save time and larbor.

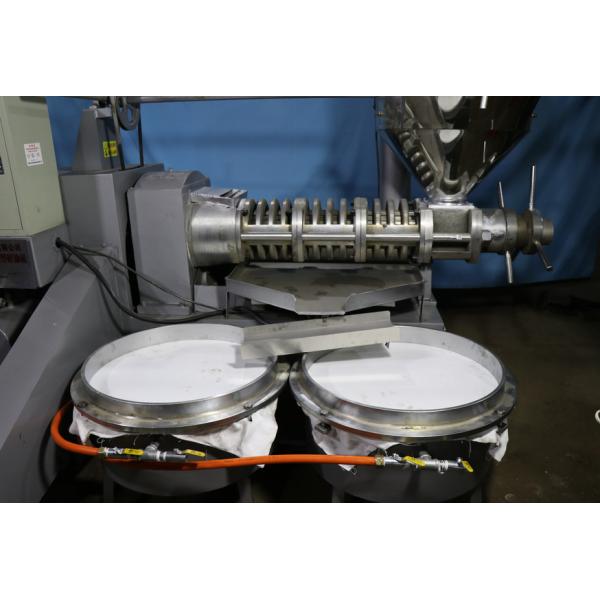

Detailed Images
Structure:
Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Our service
Pre-service:
1.We will test and adjust before we send the oil presser, make sure it can be used with confidence after receiving it.
2.We accept the customized model.
After-service:
1).The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
The damage caused by person and force majeure;
The damage caused by improper operating;
The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
Product Tags:
|
|
YL-160 Screw Oil Making Machine Hot Press Rapeseeds Oil Processing Machine Images
|
