60 Mpa High Pressure Hydraulic Oil Press Machine For Sesame Peanut With 0.36 Mm Oli Lines
Describtion:
1. Our hydraulic oil press machine applied the supercharged technology and five class safety protection system,
2. Offer the enough pressure and keep the machine working safety.
3. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield. High precision structure hydraulic system suppose higher pressure.
Parameters:
| Model | Pressure (Mpa) | Power (kw) | Oil cake diameter (mm) | Capacity (kg/batch) | Dimension (mm3) | Weight (kg) | | 6YY-185 | 60 | 1.1 | 185 | 4 | 600*880*1150 | 590 | | 6YY-230A | 60 | 1.1 | 230 | 8.5 | 670*950*1460 | 924 | | 6YY-230B | 60 | 1.1 | 230 | 9.5 | 670*950*1560 | 950 | | 6YY-250 | 60 | 1.1 | 250 | 11 | 710*950*1560 | 1070 | | 6YY-270 | 60 | 2.2 | 270 | 13.5 | 750*1010*1640 | 1230 | | 6YY-300 | 60 | 2.2 | 300 | 16 | 1000*1100*1660 | 1600 | | 6YY-335 | 60 | 2.2 | 335 | 20 | 1100*1240*1730 | 1750 | | 6YY-355 | 60 | 3 | 355 | 23 | 1160*1200*1810 | 2350 | If there is no model suitable, we can customize it for you. |
Advantages:
1. The control system:
(1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.
(2). It's easy to operate, one-key operation.
(3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
(1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can reach 60 Mpa.
(2) The hydraulic oil can be recycled, it can help you save costs.

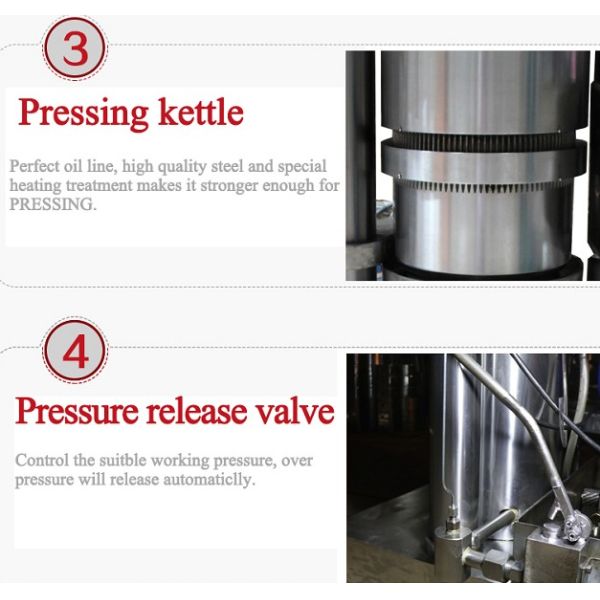

3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.
5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.
Detailed information:
Coustermers :
Workshop Display:
FAQ:
1.Q:Can you guarantee the quality of your machine?
A:We are a professional manufacturer with strict quality requirements
2. Q:How do I choose a model that suits me ?
A:You need tell us your oil raw materials and capacity demand etc.
3.Q:Does your factory accept customization?
A:As a professional manufacturer, we can do almost any kind of customization.
4. Q:How long can I use it?
A:8-10 yeas, longer service life.
5. Q:What's the delivery time?
A:Generally after paying the final payment 3-5 days.
Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
